Serve a live schema view

ptah schema serve serves a read-only web page carrying the desired schema and how a live database differs from it. The page re-reads both on every request, so where ptah schema compare answers once, this keeps answering while you work.

Use it as a second window beside the editor while you are changing models. It is not a pipeline tool: a pipeline wants an exit code, which ptah schema drift gives it. Nothing here writes to the database, and no migration depends on the server having run.

Product output

Full sizeDownloadSource

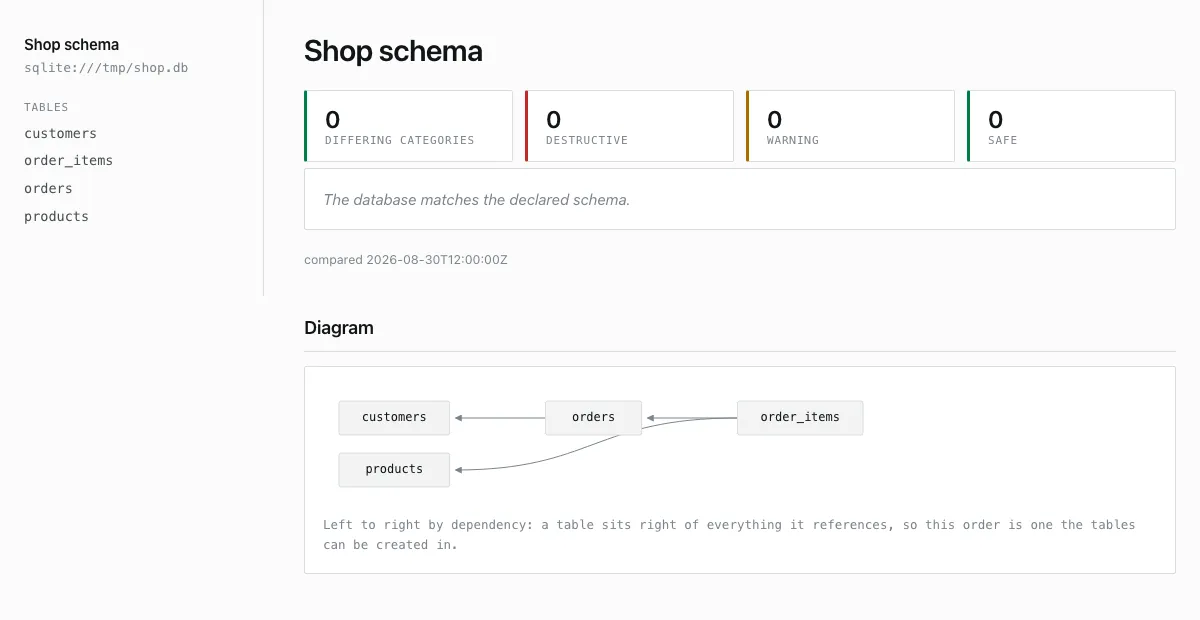

The live view before and after one desired column diverges from the SQLite database.

What to notice: Both states use the same framing: the verdict and severity counters stay above the schema diagram, while the drift state adds the exact differing category.

Reproduce this output

ptah schema serve --root-dir docs/site/fixtures/schema-ui/internal/models --db-url sqlite://shop.db --addr 127.0.0.1:7070 --refresh 0 --title 'Shop schema'

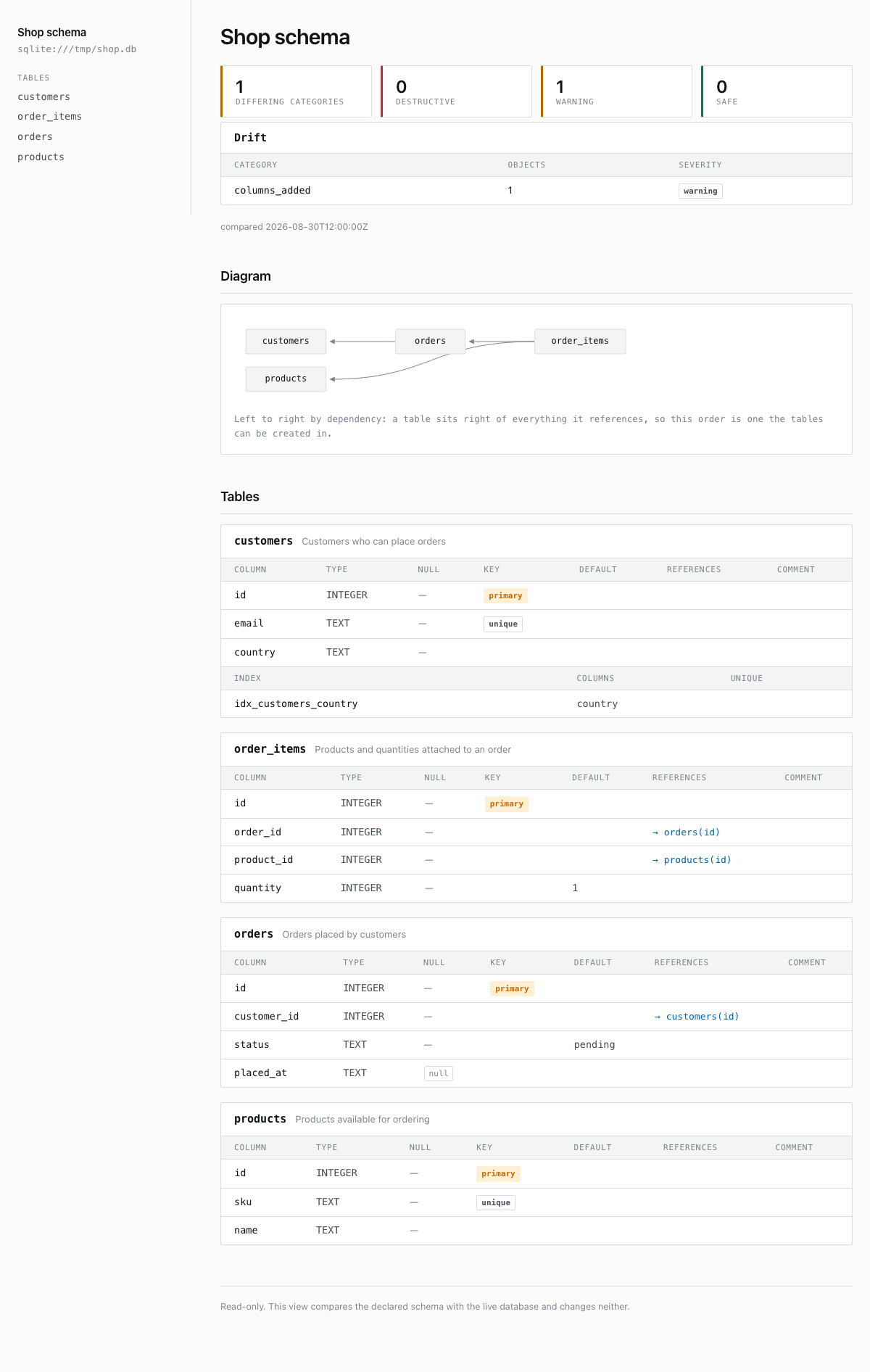

After drift: one warning category

DownloadSource

Prerequisites:

• A ptah binary on your machine (Install Ptah).
• A desired schema, as a --schema-file in SQL, YAML, HCL or DBML, or as Go annotations under a --root-dir. An oci:// artifact is the one source this command refuses; see Limitations.
• The URL of the database to compare against.

Starting state

The examples use two tables and a local SQLite database that already matches them. Save this as schema.sql:

-- schema.sql
CREATE TABLE customers (
    id INTEGER PRIMARY KEY,
    email TEXT NOT NULL UNIQUE
);

CREATE TABLE orders (
    id INTEGER PRIMARY KEY,
    customer_id INTEGER NOT NULL REFERENCES customers(id)
);

Create the database from it:

ptah schema apply --schema-file schema.sql --db-url "sqlite://$PWD/shop.db" --auto-approve

Substitute your own schema and database URL throughout. The same two tables written as Go annotations serve identically: pass --root-dir ./models in place of --schema-file, or pass both to merge them.

Start the server

ptah schema serve --schema-file schema.sql --db-url "sqlite://$PWD/shop.db"

Expected output includes:

Serving a read-only schema view on http://127.0.0.1:7070

Open the printed address in a browser. The address is read back from the listener rather than echoed from the flag, so --addr 127.0.0.1:0 prints the port that was actually chosen.

What the page shows

The page has two parts: a status panel this command adds, and the schema itself.

The status panel carries four counters — differing categories, destructive, warning, safe — followed either by the sentence The database matches the declared schema. or by a Drift table. Under it sits a timestamp reading compared and a UTC time, because a live view whose age is unknown is not a live view.

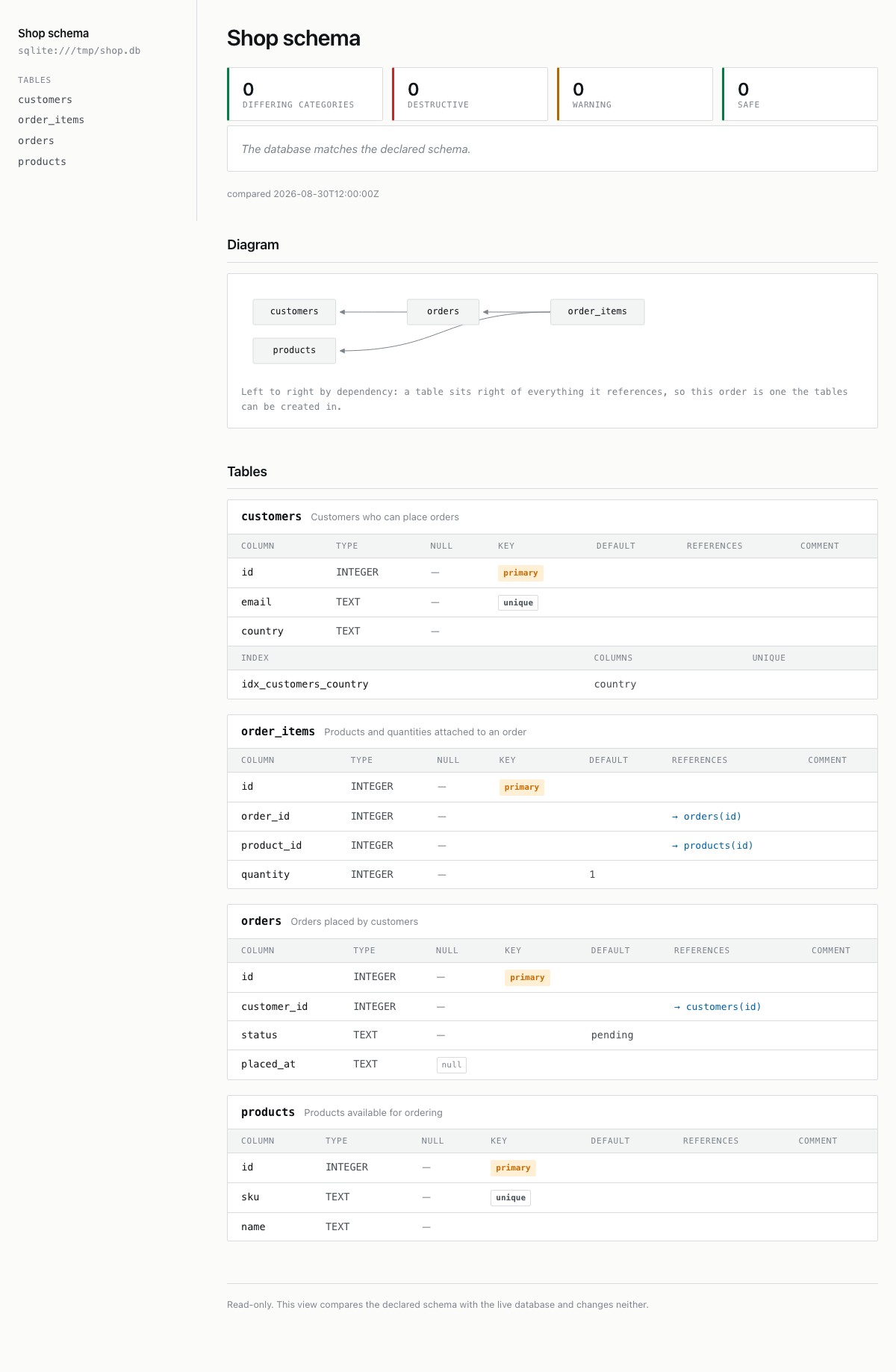

The matching view keeps the status decision above the diagram and table reference, so the first viewport answers whether action is needed.

Drift column	What it holds
Category	The difference category, for example columns_added.
Objects	How many objects fall in that category.
Severity	safe, warning, or destructive.

Those are the categories and severities ptah schema drift reports, from the same classification.

Below the panel is the schema, rendered by the same code as ptah schema export --to html: an entity diagram, then one section per table with its columns and indexes. The sidebar names the page, the database address with any credentials removed, and each table.

Watch drift appear

The desired schema and the database are read again for each request, so a change to either shows up on the next page load with no restart. Replace the orders table in schema.sql with one carrying an extra column:

CREATE TABLE orders (
    id INTEGER PRIMARY KEY,
    customer_id INTEGER NOT NULL REFERENCES customers(id),
    placed_at TEXT
);

Reload the page. The counters read one differing category, of which one is a warning, and the Drift table gains a row: columns_added, 1 object, severity warning. The new column also appears in the orders section below, because that section renders the desired schema rather than the database.

The page reloads itself every 30 seconds through a meta refresh tag and carries no JavaScript. --refresh 15s shortens the interval; --refresh 0 serves a page that does not reload.

Shape the page

• --title "Shop schema" replaces the default title, Schema dashboard, in the browser tab, the heading and the sidebar.
• --addr selects the listen address. The default is 127.0.0.1:7070.
• --refresh sets the self-reload interval as a Go duration, and 0 disables it.
• --root-dir is repeatable, so a schema split across directories is served from one page.
• --schema-file is repeatable too, and combines with --root-dir: a schema split across files, or across files and annotations, is served from one page.
• --schemas limits the database read to the named schemas, comma-separated.

Caution

--addr 0.0.0.0:7070 publishes the page to the network, and the server has no authentication. Keep the default address unless the machine is closed by other means.

Each of these also reads an environment variable, printed on its --help line: PTAH_TITLE, PTAH_ADDR, PTAH_REFRESH, PTAH_ROOT_DIR, PTAH_SCHEMA_FILE, PTAH_SCHEMAS.

Read the page from a script

There is no JSON endpoint. The HTML is the only machine-readable answer, and every path returns the same page, so curl on / is a complete client:

curl -s -o dashboard.html -w '%{http_code}\n' http://127.0.0.1:7070/
curl -s -X POST http://127.0.0.1:7070/

Expected output includes:

200
this dashboard is read-only

GET and HEAD answer; every other method gets 405 with the header Allow: GET, HEAD. The refusal is applied before any route runs, so the surface stays read-only whatever is added to it. Responses carry Cache-Control: no-store, since a cached copy would show drift that has since been fixed.

For a page you scrape, add --refresh 0. The meta tag is then absent and nothing else about the response changes.

Stop the server

Press Ctrl-C. Ptah writes one line to stderr and exits 130:

interrupt received, releasing resources; interrupt again to stop immediately

Failure modes

The database cannot be reached. The response stays at HTTP 200 and the counters are replaced by a banner headed The database could not be compared, the driver’s error, and last attempt with a UTC time. Zero drift is not rendered in that case, because a page reading zero would tell a reader their schema is in sync when nothing was measured. The schema section keeps the last comparison that succeeded, and before the first success there is no schema section at all.

Three inputs stop the command before it listens, each with exit code 2:

Message on stderr	Cause
error: database URL is required	No --db-url, and no url: in a project config in the working directory.
error: listen on 127.0.0.1:7070: listen tcp 127.0.0.1:7070: bind: address already in use	Another process holds the address. Pass a different --addr.
error: oci:// schema source cannot be served: ...	An oci:// reference passed to --schema-file. The rest of the message names ptah schema drift, which reads that source and answers once.

Limitations

• An oci:// artifact cannot be served. Reading the source again on every request is this command’s whole contract, and a registry artifact fits neither reading of it: pulling on every request puts a registry on a schedule nobody asked for, and pulling once shows a copy that has stopped matching the reference. The refusal happens before the server listens. ptah schema drift takes the reference and answers once. An external loader is absent for a separate reason: the command registers no --schema-cmd, so render that program’s output to a file first.
• With neither --schema-file nor --root-dir, the working directory is scanned for Go annotations. Started where no annotated Go file exists, the desired schema is empty and the whole database reads as drift to remove: against the database built above, the panel reports 2 differing categories with 2 destructive, and rows constraints_removed (4 objects) and tables_removed (2 objects). No schema section is drawn, and the sidebar carries the title and the database address alone. Nothing on the page says the desired side was empty.
• The drift panel counts only the categories the safety classification names. A view declared in the models and missing from the database renders 0 differing categories here, while ptah schema compare reports views_added (1) for the same pair.
• The schema section draws tables, columns, indexes, enums and foreign-key relations. Views, functions, triggers, sequences, row-level security (RLS) policies, roles and grants are not drawn.
• Every path serves the dashboard. There is no health endpoint and no static asset path, so a monitoring probe on /healthz receives a full schema render at 200, and a reverse proxy cannot route by path.
• The server has no authentication. The default 127.0.0.1:7070 keeps the page on the machine that runs it, and binding wider publishes an unauthenticated read of the schema.
• There is no --config or --env flag. A ptah.yaml or atlas.hcl in the working directory is still read, and a malformed one stops the command before it listens, but neither can be pointed elsewhere.

Exact reference

Run ptah schema serve --help for every flag with its default and its environment variable, and for the long-form note on --schema-file. The process runs until it is interrupted: the inputs above exit 2 before it listens, and Ctrl-C exits 130. Exit codes carries the verb’s row and the convention behind those numbers, and A live view carries the flag table.

Next steps

• Need the same comparison as a pipeline check with an exit code? Use Compare and drift.
• Ready to reconcile what the panel reports? Use Apply directly.
• Want the schema page as a file to commit or attach? Use Generate schema documentation.
